If your current finishing process is a bottleneck, replacing it with a modern electrophoresis production line can provide a dramatic leap in efficiency. Unlike manual spray processes that are limited by operator speed, an automated E-coat line runs at a consistent, optimized pace. The process is highly repeatable, which nearly eliminates the need for time-consuming rework. Furthermore, a well-designed line from TIMS integrates all stages seamlessly, eliminating dead time between processes. Features like high-efficiency ovens and automated chemical dosing also reduce energy and material consumption, making the entire operation more cost-efficient and increasing the overall throughput of your facility.

"Drag-out" is a term used in an electrophoresis production line to describe the liquid paint that clings to a part as it exits the main E-coat tank. This represents a significant loss of expensive paint material if not managed properly. A TIMS line minimizes and recovers drag-out in several ways. First, we design part racking and tilting mechanisms to help the paint drain back into the tank. Second, the part immediately enters a series of post-rinse tanks. These rinses wash off the remaining drag-out. This rinse water is then sent to an ultrafiltration system that separates the paint solids and returns them to the main tank, creating a closed-loop system that ensures nearly 100% of the paint is utilized.

The curing oven is the final and critical stage of an electrophoresis production line. Its function is to bake the applied E-coat film, causing the epoxy or acrylic resins to cross-link and form a hard, durable, and corrosion-resistant surface. This requires precise temperature control. If the part is under-cured, the finish will be soft and lack durability. If it's over-cured, it can become brittle and discolored. A modern TIMS curing oven uses multiple zones of control and a combination of infrared and convection heating to ramp the part to the correct temperature and hold it there for the precise amount of time required for a full cure, ensuring maximum performance from the coating.

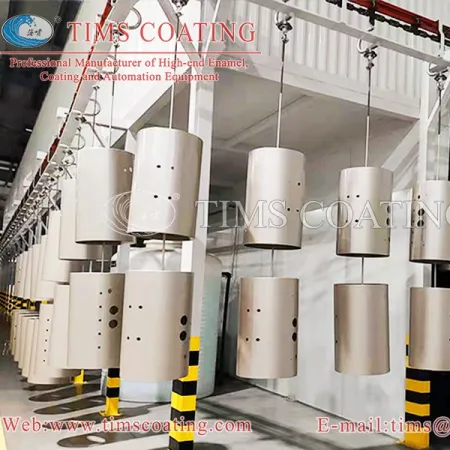

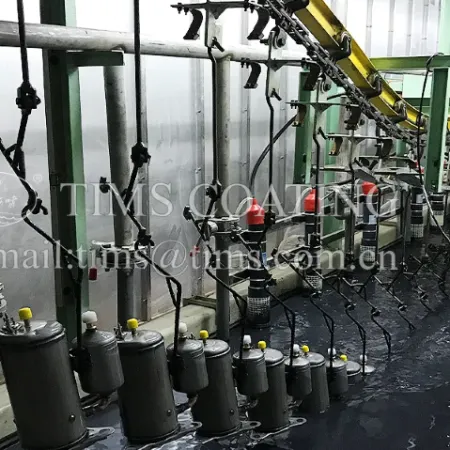

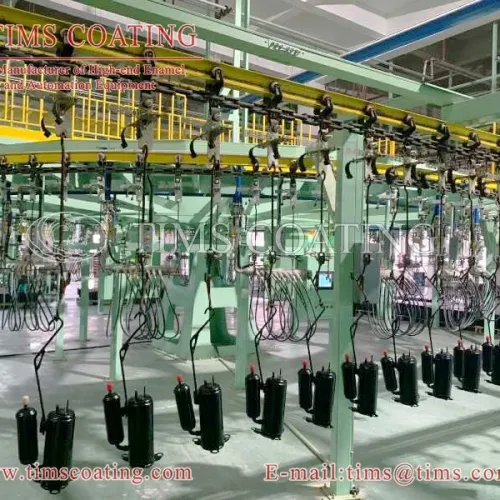

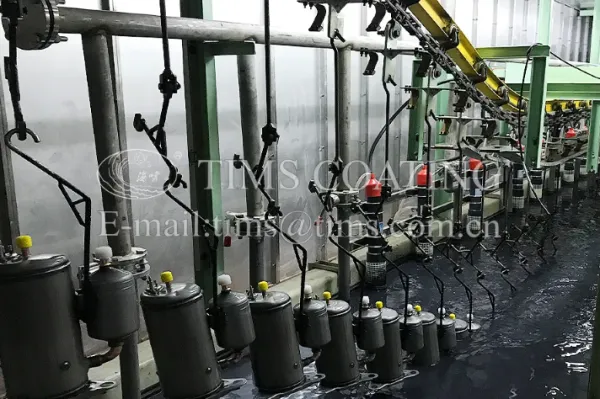

The process flow of an electrophoresis production line is a highly controlled, sequential journey. It begins with loading parts onto a conveyor system. The parts then enter a multi-stage pretreatment tunnel, where they are sprayed or dipped in a series of cleaning, rinsing, and conversion coating tanks. After pretreatment, they enter the main E-coat tank, where they are submerged and electrically charged to deposit the paint. Following deposition, the parts go through several post-rinse stages to recover excess paint and ensure a clean surface. Finally, they travel through a large curing oven, where the coating is baked at high temperatures to cross-link and harden into its final durable film, before being unloaded from the line.
